Product Details:
Payment & Shipping Terms:
|
| Material: | TPU | Color: | Black |
|---|---|---|---|
| Net Weight: | 510g | Power Supply: | 1 CR123 Batteries |
| Service: | OEM / ODM | HS Code: | 9004909000 |
| Highlight: | IR510 Nano Thermal Monocular,Nano Handheld Thermal Monocular,Outdoor Recreation Thermal Monocular |
||

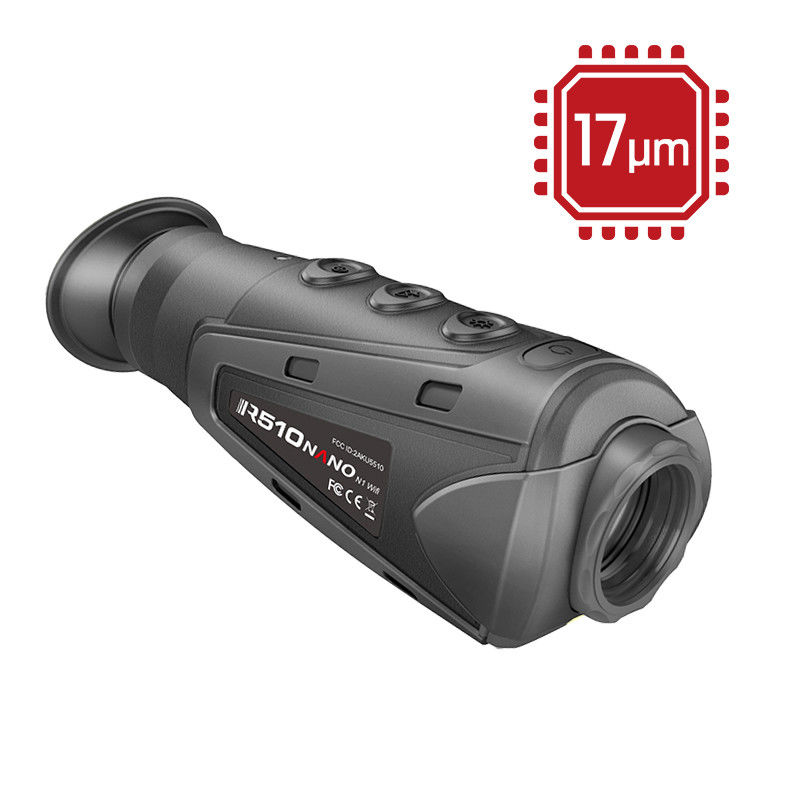

IR510 Nano Series Handheld Thermal Monocular Search And RescueLaw EnforcementPersonal Vision SystemOutdoor Recreation

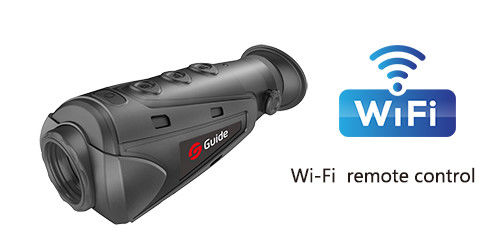

• Wi-Fi for remote control,to display synchronously, take photos and videos
• Imaging better,detect further,highlight the target easier
• With its small pocket size and ergonomic design,which allows you to scan vast areas for long period of time without arm fatigue
• Built-in battery life up to 5h, external power supply available
• The length is 16cm, weight is about 350g
• It is wrapped by rubber and can prevent from rain,dust,shock
• Easy operation with only three buttons Silent and lightproof design to prevent exposure
• IP66 protection and 1m drop test passed to suit the wild
• Standard analog video output interfaces
• Standard Micro USB interface for data transmission and charging
• Adjust the diopter to improve the sharpness of the image for different users
• Standard accessories: Power adapter, USB charger, Video cable, Lens cap, Wrist strap, Soft drawstring bag, User manual, Certificate Card
• Optional LED flashlight or laser indication light
• Optional 40㎜ lens
| Model |
IR510 N1 |
IR510 N1 WIFI |
IR510 N2 |
IR510 N2 WIFI |
|
Detector |
||||
|
Detector Type |
400×300@17μm |
|||
|
Spectral Range |
8μm~14μm |
|||
|
Lens |
||||
|
Focus |
19mm |
25mm |
||
|
Focusing |
free |
Manual |
||
|
FOV |
19.0°×14.5° |
14.6°×11.1° |
||
|
Screen |
Colorful 0.2″LCOS |
|||
|
Viewfinder |
Monocular, diopter adjustable±4 |
|||
|
Image |
||||
|
Frame |
50Hz |
|||
|
Digital Zoom |
×2, ×4 |
|||
|
Color Palette |
Black hot, white hot, red hot 1, red hot 2, red hot 3 |
|||
|
Fuctions |
||||
|
Photograph |
× |
× |
× |
× |
|
Additional functions |
Illuminator or laser pointer or neither |
Illuminator or laser pointer or neither |
Illuminator or laser pointer or neither |
Illuminator or laser pointer or neither |
|
Cross cursor |
√ |
√ |
√ |
√ |
|
Image enhancement |
× |
√ |
× |
√ |
|
Wi-Fi |
× |
√ |
× |
√ |
|
Zoom |
√ |
√ |
√ |
√ |
|
Freeze |
√ |
× |
√ |
× |
|
Charging indicator |
√ |
√ |
√ |
√ |
|
Active indicator |
√ |
√ |
× |
√ |
|
Power |
||||
|
Battery |
Internal Li-ion battery,3.7V,3200mAh |
|||
|
Working Time |
≥5h |
|||
|
Adapter |
Standard USB power adapter, max 10W |
|||
|
Interface |
||||
|
USB |
Charging |
|||
|
Video Output |
MCX Connector,PAL/NTSC |
|||
|
Environment Characteristics |
||||
|
Working Temperature |
-10℃~50℃ |
|||
|
Storage Temperature |
-30℃~60℃ |
|||
|
Humidity |
10%~95% |
|||
|
Shock |
10Hz~150Hz~10Hz 0.15mm IEC60068-2-6 |
|||
|
Encapsulation |
IP66 |
|||
|
Drop |
1m drop |
N/A |
||
|
Physical Parameter |
||||
|
Weight |
350g |
375g |
||
|
Size |

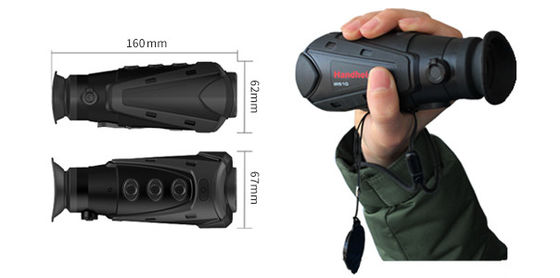

160mm×67mm×62mm |
168mm×67mm×62mm |
||
|
Package |
||||
|

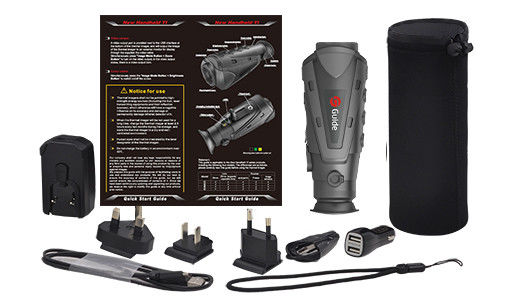

Standard accessories |
thermal imager/ power adapter/ USB cable/ video cable /lens cap/ wrist strap/ shoulder strap/ soft drawstring bag/ user manual |
|||
|
Optional accessories |
N/A |
40mm extender lens(FOV:9.3°×7.0°) |
||
|
Detection Range |
||||
|
Human:1.8m×0.5m |
500m |
700m |
||
|
Vehicle:2.3m×2.3m |
1300m |
1700m |
||
|
Recognition Range |
||||
|
Human:1.8m×0.5m |
300m |
350m |
||
|
Vehicle:2.3m×2.3m |
500m |
700m |
||
Certifications
Exhibition
Packing & Delivery
1pc goggles into a clear poly bag, 10pcs into a white box,
10 white boxes into a outer carton, 100pcs into one carton.
